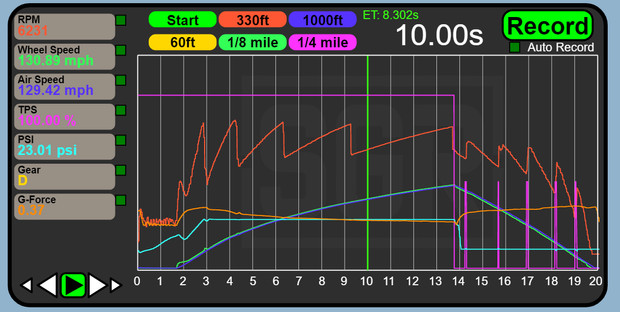

V1 Data Logger Overview

• Record Button:
  Located at the top right corner, this button starts recording. While recording, it changes to a Stop button.

• Data Points and Graphs:

  • Colored data points on the left correspond to the colored lines on the graph.
  • Green checkboxes allow you to show or hide individual data points.

• Recording Duration:

  • The logger records for 20 seconds.
  • Numbers at the bottom of the graph represent seconds (0–20).

• Timer Display:

  • A large timer at the top indicates the position of the vertical data line on the graph.

• Control Buttons:

  • Forward, Backward, and Play buttons allow you to move the vertical data line:
    • Play/Pause: Moves the line in real-time.
    • Left-click Big Arrows: Move by 1 second.
    • Right-click Big Arrows: Move by 0.5 seconds.
    • Left-click Small Arrows: Move by 0.1 seconds.
    • Right-click Small Arrows: Move by 0.01 seconds.

• Quarter-Mile Pass Tracking:

  • The logger automatically tracks if you complete a 1/4-mile pass during the recording.
  • Buttons at the top let you jump to specific points in the pass.
  • ET Display (Green): Shows the elapsed time between the start of the pass and the current vertical line location.
  • (Note: While this provides a margin-accurate reading, it is not intended to replace Adam's Advanced Distance Timer.)

• Auto Record:
  Automatically starts a data log if any of the following conditions are met:

• Transbrake is pressed (at any speed).
• Foot brake and throttle are both pressed more than 80%.
• Clutch and throttle are both pressed more than 80%
