Drag Tree and Timer System Overview

This system combines a drag tree light system and a drag timer, offering a complete solution for drag racing functionality. Here's how it works:

Drag Tree Light System

• Pre-stage Lights: These activate whenever the brake, transbrake, or clutch pedal is pressed.

• Full Stage:

  • Achieved when any of the above three pedals are held down and the throttle is above 80% for 1.5 seconds.

  • Once fully staged, you are locked in position, and a random timer (1.5–2.5 seconds) will determine when the tree drops.

Tree Types

Four tree modes are available, offering versatile lighting sequences:

• .400 Pro Tree:

  • A .400-second delay between the lighting of all three yellow bulbs and the green bulb.

• .500 Pro Tree:

  • Identical to the .400 tree, but with a .500-second delay instead.

• Sportsman Tree:

  • Lights the yellow bulbs sequentially from top to bottom in 0.5-second intervals, ending with the green light.

• Instant Green:

  • Operates like a Pro Tree, but skips the yellow bulbs entirely—only the green light is displayed.

Reaction Time System

• Triggering: Reaction time is recorded once fully staged and the vehicle exceeds 1 mph.

• Measurement:

  • A timestamp is taken at the moment the car moves, compared to the scheduled green light activation time.

  • Any negative reaction time results in a red light.

Drag Timing System

• Ready to Record: The timer resets whenever the car is below a set speed threshold.

• Start Recording: The timer begins as soon as the car exceeds a specific speed threshold.

Additional Notes

• Independent Timer:

  • The drag timer operates independently from the drag tree. You can start a run anytime, and it will record accurate times without factoring in reaction time.

• Best Times:

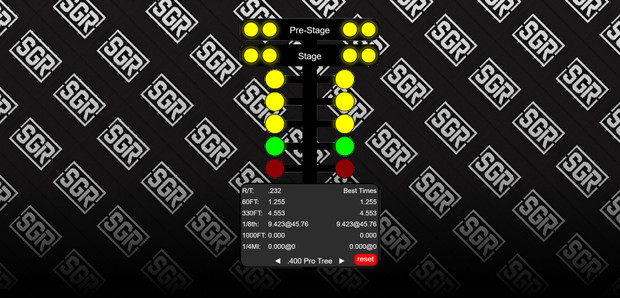

  • Your best times are displayed on the right side of the screen and can only be reset by clicking the reset button in the bottom-right corner.

Disclaimers

• The drag timer does not require the tree to drop before recording starts. Reaction time is never added to or subtracted from your pass time.

• This timer is calibrated to in-game systems like West Coast and Gridmap V2. While the times may appear slightly faster compared to Adam’s timer, this system aims to provide more accurate results for in-game performance.

• If a car has an excessively shaky jbeam, the timer may not work as intended. This issue stems from the car itself, not the timer.

• This drag tree does not work in conjunction with any in-game trees and does not pair two clients together. It is designed purely for client-side use.

Known Bugs

• Occasionally, the red light may trigger unexpectedly when you are moving, displaying excessively high reaction times. Enjoy the chaos!

Thank you for the amazing support! Let me know your thoughts.
